NSK NLZ S230 PORTABLE SYSTEM

Stock Code:
NKY1500360
Login For Price
Enquire
Print

Description

Now in a more compact size, with higher safety and flexibility for different installation styles, NSK’s all new “NLZ” can help any user of air driven handpieces convert to electric and enjoy the full benefits of this smart system. The unique technology of “NLZ” employs an all-new micromotor system and expands the possibilities of dental treatment. This original concept from the leading handpiece manufacturer provides cutting-edge features applicable to a wide-range of endodontic treatments with
enhanced comfort and safety. A big change in treatment environment is brought with only a minor addition to the current equipment in your office.

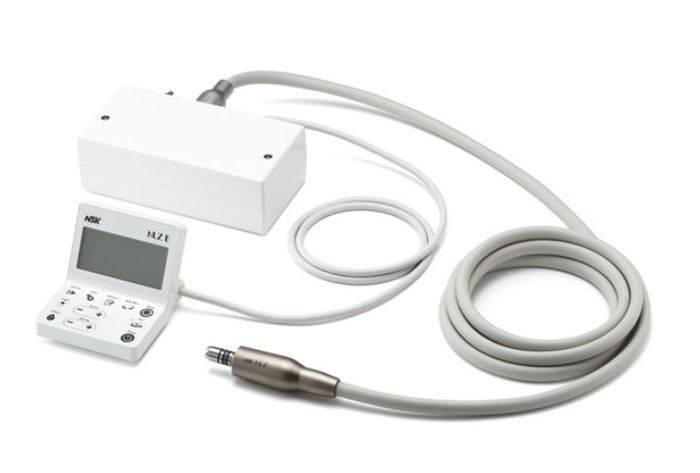

MODEL: NLZ S230

Contents :
• NLZ U (Control Unit & Main Unit)
• NE180 (AC adaptor)
• NLZ (Motor)
• NLZ CD (Motor Cord 1.8 m)
• NLZ U BRACKET

Unit:
Dimension Control Unit : W 76 × D 87.1 × H 63.4 mm
Dimension Main Unit : W 146 × D 75 × H 48 mm
Power Supply : 230 V 50/60 Hz
Programs : General Application Mode - 6 programs / Rotary Endo Mode - 6 programs

Motor:
Motor Type : Brushless Micromotor
Max Torque : 4.2 Ncm
Endodontics Torque : 0.3 - 6.0 Ncm*
Motor Speed : 100 - 40,000 min-1
Dimension : ø22 × H 68.8 mm
Weight : 59 g (motor only)
Light : White LED
