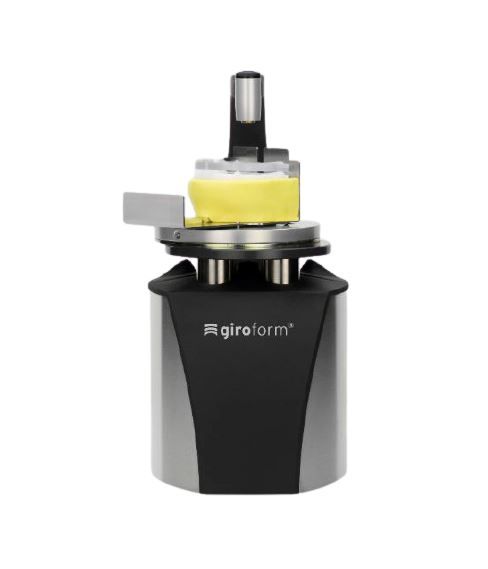

GIROFORM PIN DRILL COMPLETE UNIT

Stock Code:
AM176701
INDENT
Login For Price
Enquire
Print

Description

Perfect operation, highly precise and economical.

The pin drill allows precise, fast and safe determination of the desired drill position. Drilling starts at the press of a button. The plate holder is fastened magnetically, securing the drill position.

In order to guarantee pin friction, identical, smooth-faced and regular holes are drilled into the Giroform base plate. The precise drill guide also enables uniform drilling depth. These specific characteristics of the Giroform® pin drill guarantee precise, fast and cost-effective model manufacture.

Benefits:
- Fast and easy to use
- Laser beam for easy drill positioning
- Plate holder smoothly adjustable thus ensuring safe and fast operation
- Plate holder is secured magnetically and automatically when drilling starts
- Semi-automatic drilling at the press of a button (0.5 seconds per hole)
- Automatic drill advance guarantees identical bore-holes in the plates
- Robust device providing many years of reliability

Technical data:
- Dimensions D/W/H: 250 x 183 x 370 mm
- Weight: 9,6 kg
- Mains supply: 230 (100/115) V/0,32 W
- Motor speed: 2.800 min-1
- Laser class: 3A < 5mW
